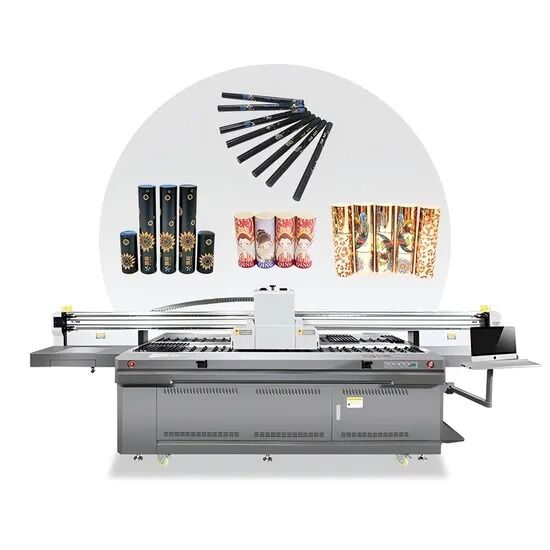

Cylinder UV Ink Vacuum Bottle Digital UV Printer
Product Features
- High Precision: 3.5pl droplet size provides optimal balance between throughput and print quality for various applications
- High Resolution: Multiple inkjet schemes adapt to different printing materials with accurate colors, distinct layers, and smooth transitions
- Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working periods prevents blockage from ink curing
Technical Specifications - CF-2510 (Duplex)
| Specification |
Details |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Nozzle Specifications |
Effective Orifice: 1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distribution and wholesale of UV printers, including single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers. Our 2500 m² factory in Panyu, Guangzhou employs over 10 R&D staff and 150 workers with ISO certification, strict quality control, and production management. We support OEM and ODM services with over 10 years of UV printer manufacturing experience and positive client feedback from France, Germany, Vietnam, India, and other countries. All products carry CE and RoHS certification.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
A: White ink enables high-quality graphics on hard or soft materials like acrylic boards or backlit films, and can serve as a primer for non-white materials. Varnish enhances picture brightness and extends UV ink fade resistance.
Q2: What materials can UV flatbed printers print on?
A: All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, and wood boards. UV printing eliminates coating requirements and prevents fading and blistering issues.
Q3: Which languages does the RIP installation interface support?
A: Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
Q4: How is the after-sales service?
A: Our experienced technicians provide comprehensive technical support and training until you fully master machine operation. International technical support and on-site service available.
Q5: Regarding printer maintenance
A: We recommend daily ink pressing when starting the printer. For periods exceeding 10 days of non-use, clean the print head with cleaning fluid and maintain nozzle moisture.
Q6: Are you a factory or a foreign trade company?
A: We are a factory manufacturer, enabling us to provide competitive pricing and high-quality services directly.
